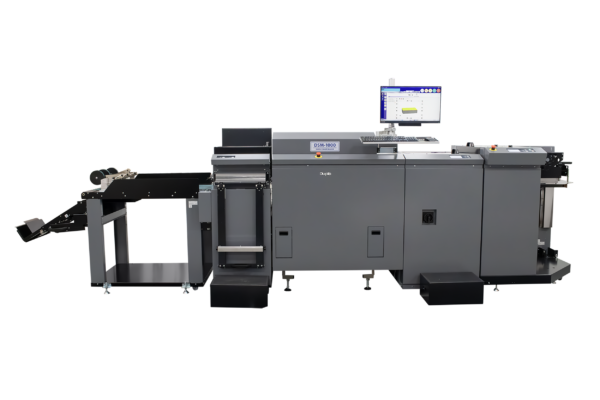

Platen Die Cutter
Precision Cutting for Short-Run Packaging
- Cuts, creases, perforates and kiss cuts
- Utilizes customizable steel rule dies
- Removes inner and outer waste from finished pieces
The DSM-1000 B2 Platen Die Cutter offers an automated, efficient solution for your short-run packaging and custom-shaped applications. Versatile and compact, the DSM-1000 B2 utilizes steel rule dies to produce a wide range of applications such as folding cartons, pocket folders, and POP displays with incredible precision. It processes press sheet sizes up to 20.8” x 29.5” up to 600 gsm and it’s the perfect companion for your B2 inkjet, digital and offset presses.</p>
Features
- Easy die set up and changeover
- Air suction feeder with high stack capacity
- Optional Separation Unit removes inner and outer waste
- Optional Registration Mark Kit provides added level of accuracy
Key Applications
- Product packaging
- Counter displays
- Pocket folders
- Pocket mailers
- Custom-shaped cards
Specifications
| Speed | Up to 3,100 sheets/hr (depending on paper length) |
|---|---|
| Input Paper Size | 10.98" x 10.98" to 20.86" x 29.53" |
| Feeder Capacity | Up to 15.74" |
| Paper Weight | Up to 600 gsm |
| Options | DSM-SP Separator Unit, Registration mark kit, Sub-suction Unit |
Applications
The DSM-1000 B2 Platen Die Cutter provides an efficient and automated solution for your on demand packaging jobs. Versatile and compact, the DSM-1000 utilizes steel rule dies to produce a wide range of applications – from folding cartons and POP displays to pocket folders – with incredible precision. It processes press sheet sizes up to 20.8” x 29.5” up to 600 gsm. It’s the perfect companion for your B2 inkjet, digital and offset presses.

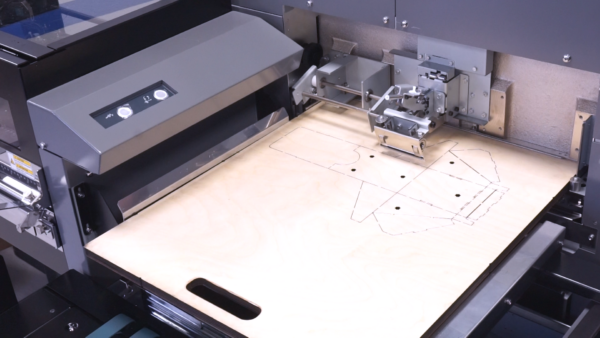

Traditional Steel Rule Dies
Ideal for larger and thicker paper, the DSM-1000 Die Cutter utilizes steel rule dies to perform through cutting, creasing, perforating, and kiss cutting. Dies are custom-made, durable, and inexpensive to manufacture. Set up time is also short with changeovers and adjustments made in a matter of minutes. The DSM-1000 B2 delivers exceptional crease quality and foldability, with and without lamination.
PC-Based Setup: Simplifying the Process with the DSM-1000 Die Cutter

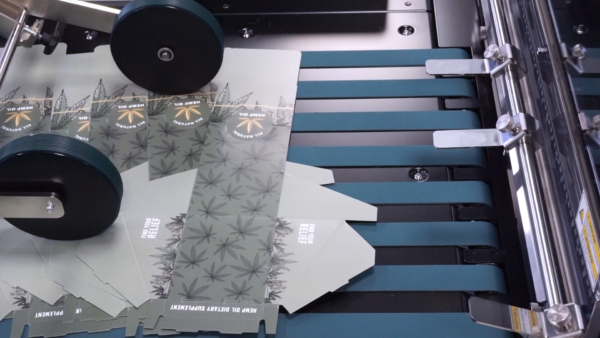

Designed to cater to operators of varying skill levels, the DSM-1000 Die Cutter boasts a user-friendly graphic user interface. Set up jobs and make adjustments to cutting positions, pressure, and separation. Manage feeder, registration mark reader, and stacker conveyor settings with ease.
With the PC Controller, operators have the capability to save an unlimited number of jobs. This preserves all settings and adjustments to facilitate job recall. Adding the barcode reader allows it to read the barcode affixed to the die board and retrieve the corresponding job in an instant. This minimizes make-ready time and increases operational efficiency. A registration mark reader can also be added to adjust the sheet in X and Y directions for more accuracy.
High Productivity & Maximizing Efficiency

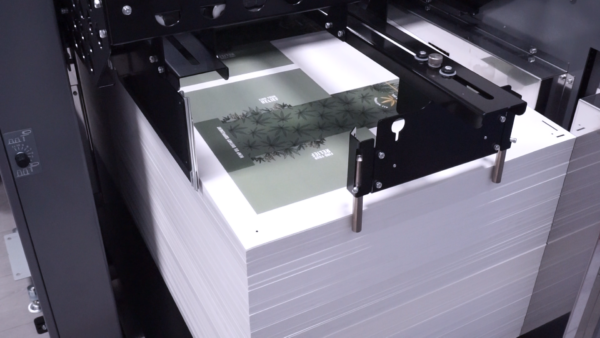

Feeding up to 3,100 sheets an hour, the DSM-1000 Die Cutter features an air suction belt feed system with front and side air separation. This provides consistent and reliable feeding of a wide range of paper and substrates. Additionally, it features a high stack feed capacity up to 15.7” (400 mm), a double feed detection sensor, and easy access to the air management system.
