Perfect Binder
Automated Book Binding On Demand
- Binds book blocks with soft covers
- Applies hot-melt EVA glue to the spine and sides

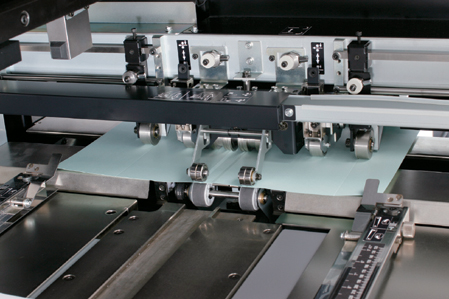

- Performs cover hinge scoring

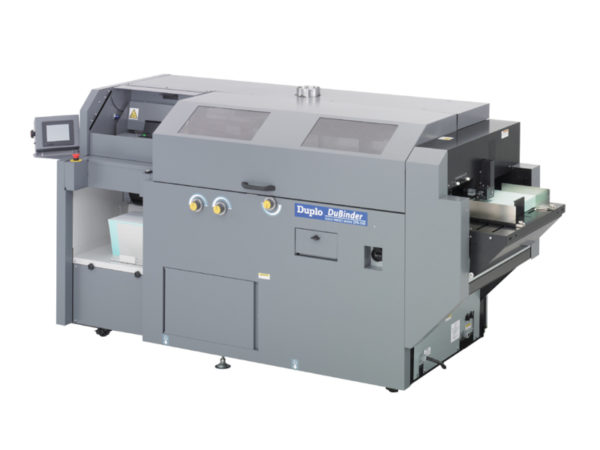

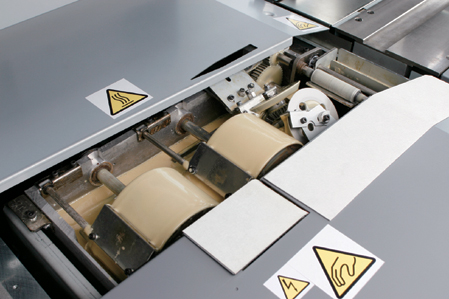

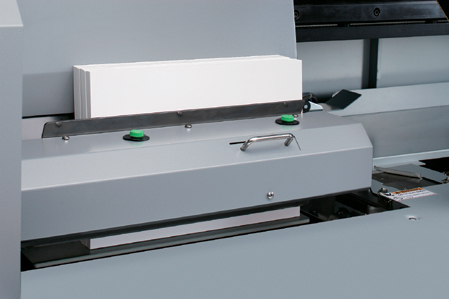

Ideal for short to medium runs and variable productions, the single-clamp DPB-500 Perfect Binder produces books up to 2″ thick and up to 525 cycles per hour. With the cover automatically fed into position, the book block is moved across the milling and notching station to properly prepare the spine for strong glue penetration. The DPB-500 features a large glue tank with two heated drums and two side gluing wheels to bind the edge of the cover to the side of the book block for proper opening and closing. The clamp can also automatically adjust to process variable thicknesses and set the nipping and hinge scoring station for precision book binding.
Features
- Automated job set up and changeovers
- Strong notching with 2 tools and dust extraction
- Automatic cover feeder with double feed detection sensors

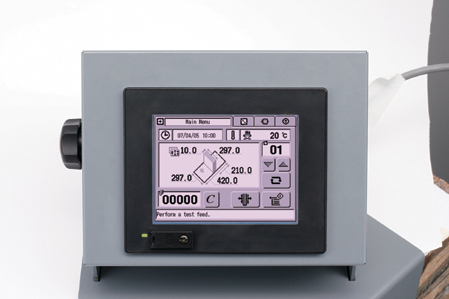

- Touchscreen control panel with 20-job memory
Key Applications
- Paperback books
- Textbooks and workbooks
- Notebooks and journals
- Catalogs and manuals
- Books with spot UV covers
Specifications
| Speed | Up to 525 cycles per hour |
|---|---|
| Input Paper Size | Book block: 4.72" x 4.72" to 12.6" x 14.17", Cover: 4.72" x 9.84" to 14.17" x 27.4" |
| Binding Thickness | 0.04" to 2.01" |
| Cover Feed Capacity | 2.76" |
| Paper Weight | Book block: Fine quality 52 to 157 gsm, Art coated 79 to 157 gsm, Cover: Fine quality 81.4 to 302 gsm, Art coated 104.7 to 302 gsm |
| Options | Barcode kit, DPB-LS Long Stacker, Wing scoring |
“The DPB-500 had the combination of scoring and gluing that we needed in order to produce our booklets in a way that was high quality. Being perfect bound, having a squared back, we’re able to pack more of those per box.”
BILD International BILD International helps churches develop comprehensive, wisdom-based education programs through a church-based philosophy, curriculum, and network.
“Our covers we put a UV coat on them. It protects the colors of the covers, keeps the colors from fading, helps strengthen the paper, and helps the books last longer.”
The Wisdom Center The Wisdom Center is a church with international ministry based in Fort Worth, Texas.
“We use the DPB-500 Perfect Binder to bind our catalogs, some of lower page catalogs up to 400-page books.”
Feizy Rugs Feizy Rugs is recognized as one of the largest manufacturers and innovators of fine rugs in the world.
