Touchline
High Speed Creasing and Perforating for Production Environments
- Prevents toner cracking
- Performs up and down creases
- Creates cross perforations

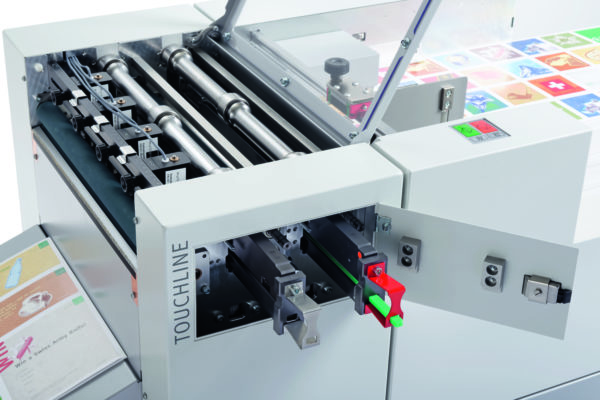

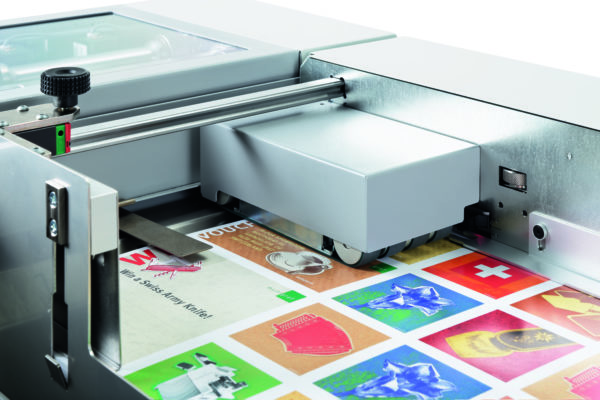

The CP375 DUO Touchline eliminates unattractive fold lines on digitally-printed applications up to 6,000 sheets per hour. Creasing prior to folding allows fold devices to bend the sheets with greater ease. The CP375 DUO utilizes the Multigraf Swing-Bar creasing system to perform positive or negative patterns. Both tools be used simultaneously and interchangeably when up and down creases are required to fold applications in opposite directions. The cross perforating tool can be used for tear-off applications and can be combined with the stop perforating tool to create cross perforations.
Features
- Easy job set up and changeover
- High feed capacity for longer runs
- User-friendly touchscreen control panel
- Standard positive and negative creasing tools plus cross and stop perforating tools
Key Applications
- Z-folds and accordion pieces
- Gatefold invitations
- Perfect bound covers
- Greeting cards
- Marketing collateral
Specifications
| Speed | Up to 6000 sheets per hour |
|---|---|
| Input Paper Size | 4.13" x 5.82" to 14.76" x 41.33" |
| Feeder Capacity | 7.08" |
| Paper Weight | 80-400 gsm |
| Creases | Up to 20 per sheet |
| Perforations | Up to 20 per sheet |
