Booklet System
Precision Bookletmaking for Mid-Range Production
- Turns flat sheets into finished booklets
- Performs saddle, side, and corner-stitching
- Processes CD to letter-size booklets

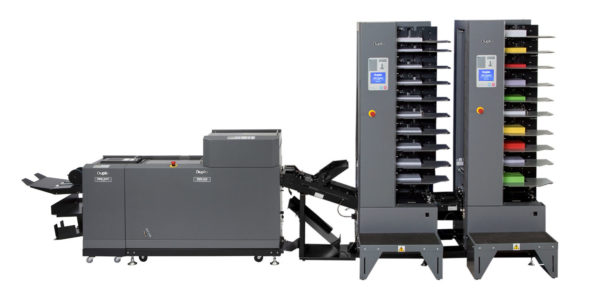

With the fully automated 350 Booklet System, the DBM-350/T Bookletmaker and Trimmer integrate the stitcher, folder, and face trimmer into an efficient system – eliminating the task of setting and folding signatures separately. The DSC-10/60i Suction Collator offers the flexibility to feed output from multiple presses, both offset and digital.
Add the DSS-350 Square Spine module to give your booklets a lay flat finish. Cut job costs by removing manual set ups and finish jobs in quick turnarounds. With a speed of up to 3,000 booklets per hour, the 350 Booklet System produces a range of applications, from catalogs to collated work, on demand.
Features
- Automated job set up and changeovers
- 10-bin feeding per tower with dual fan technology
- LCD control panel with 20-job memory
- Small booklet and side/corner stitch kits for additional finishing
Key Applications
- Manuals
- Newsletters
- CD-size booklets
- Half letter-size brochures
- Marketing collateral with spot UV covers
Specifications
| Speed | Up to 3000 booklets per hour |
|---|---|
| Maximum Number of Bins | 40 (Four DSC-10/60i towers) |
| Input Paper Size | 5.82" x 8.27" to 12.60" x 18.11" |
| Paper Weight | Art coated paper 104.7 – 157gsm, Cover 52-300 gsm, Cover 79-300 gsm, Fine quality paper 52 – 157gsm |
| Number of Sheets | Up to 20 sheets |
