Booklet System
Precision Bookletmaking for Shorter Runs
- Turns flat sheets into finished booklets

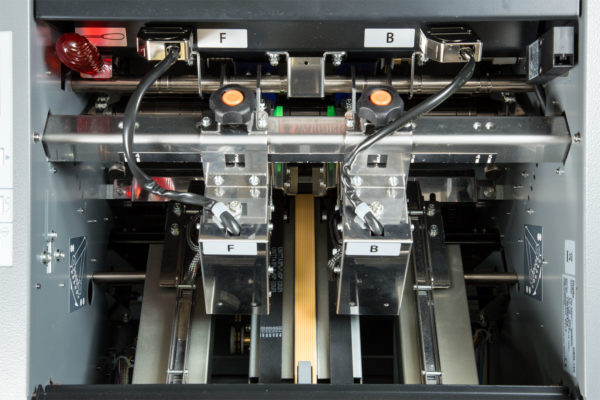

- Performs saddle, side, and corner-stapling
- Processes CD to letter-size booklets

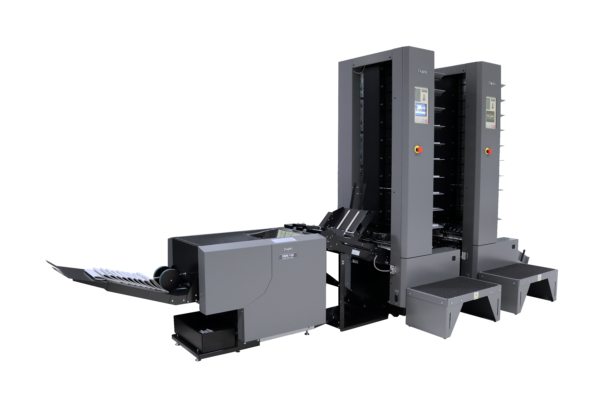

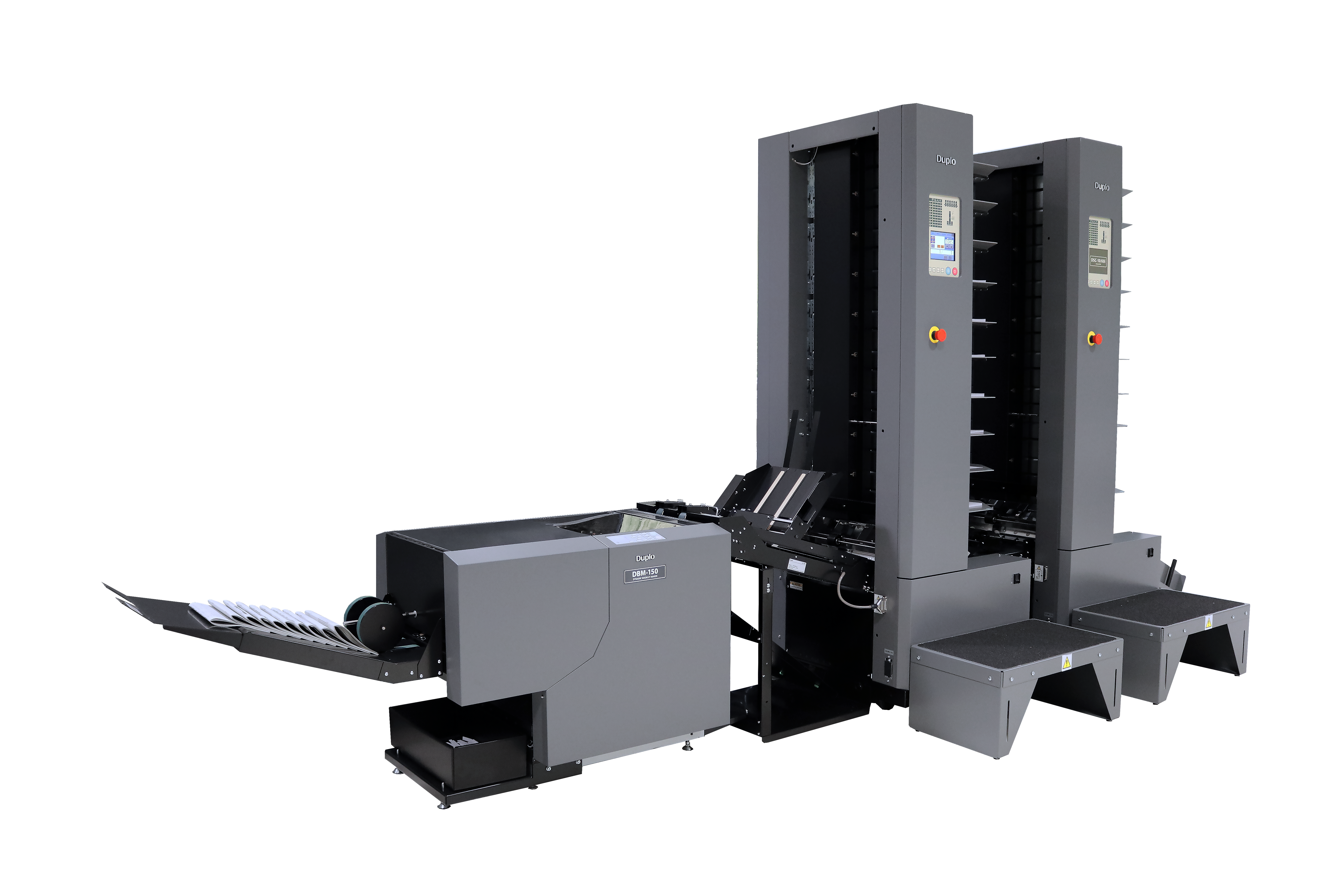

With the entry-level 150 Booklet System, the DBM-150/T Bookletmaker and Trimmer integrate the stapler, folder, and face trimmer into an efficient system – eliminating the task of setting and folding signatures separately. The DSC-10/60i Suction Collator offers the flexibility to feed output from multiple presses, both offset and digital. Cut job costs by removing time-consuming set ups and finish jobs in fast turnarounds. With a speed of up to 2,400 booklets per hour, the 150 Booklet System produces a range of offset and digitally-printed applications, from catalogs to collated work, on demand.
Features
- Automated job set up and changeovers
- 10-bin feeding per tower with dual fan technology

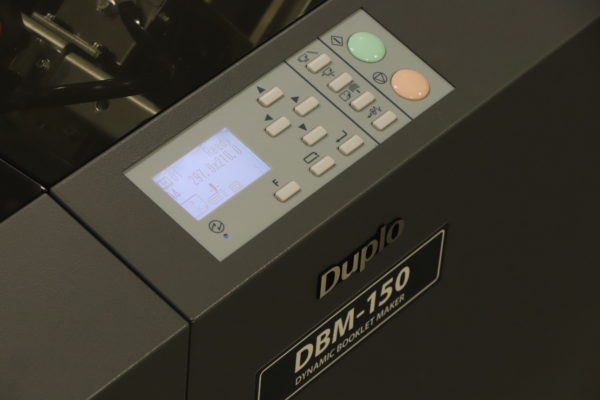

- LCD control panel with 16-job memory

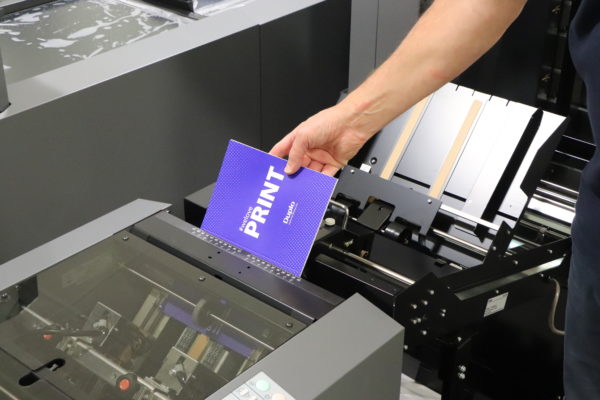

- Standard side/corner staple kit and manual feed
Key Applications
- Manuals
- Newsletters
- CD-size booklets
- Half letter-size brochures
- Marketing collateral with spot UV covers
Specifications
| Speed | Up to 2400 booklets per hour |
|---|---|
| Maximum Number of Bins | 20 (Two DSC-10/60i towers) |
| Input Paper Size | 4.72" x 8.27" to 12.60" x 18.11" |
| Paper Weight | Art coated paper 79 – 157gsm, Cover 52-300 gsm, Cover 79-300 gsm, Fine quality paper 52 – 157gsm |
| Number of Sheets | Up to 25 sheets |
| Options | DBM-400STR Deep Pile Stacker, Envelope kit, Ultrasonic sensor kit |
